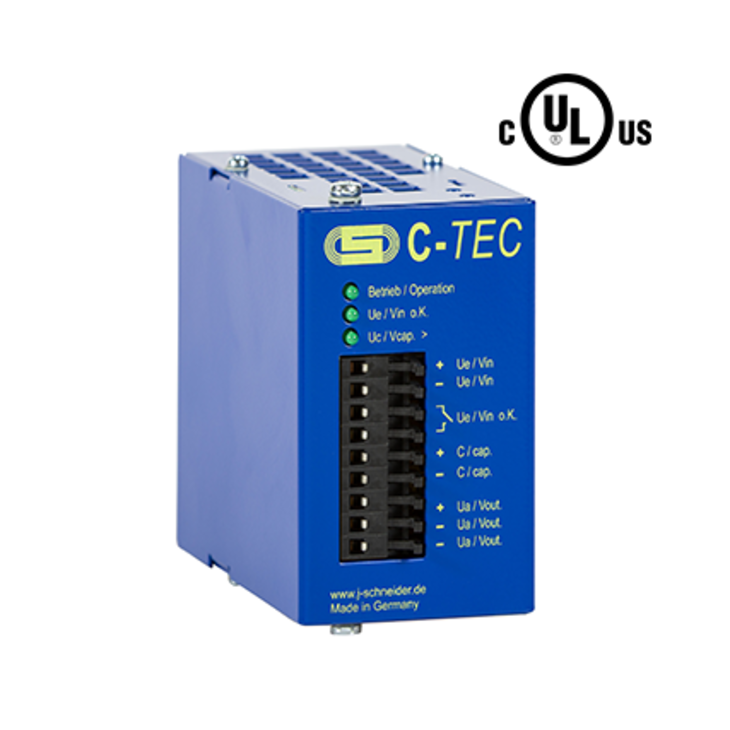

C-TEC series: safe and robust

The units of the C-TEC series work with ultra capacitors inside the housing as energy storage. If the DC supply is interrupted, the energy of the ultracapacitors is released in a controlled manner. The load is supplied by the buffer module until it is discharged. The buffer time depends on the state of charge of the capacitor and the discharge current.

Highlights of the C-TEC series at a glance

maintenance-free due to long-life ultracapacitors
microcontroller-supported charging and discharging of the ultracapacitors
Operating and charging status monitoring via LEDs
maximum fast charging through active charging current control
IPC management through time- and output current-triggered switch-off function
numerous customised parameterisation options via USB interface

The C-TEC series

Devices with DC input

input voltage 24 V DC
output voltage 24 V DC
output current 3 A
energy 0,5 oder 1 kJ

input voltage 24 V DC
output voltage 24 V DC
output current 3 A
energy 1,5 kJ

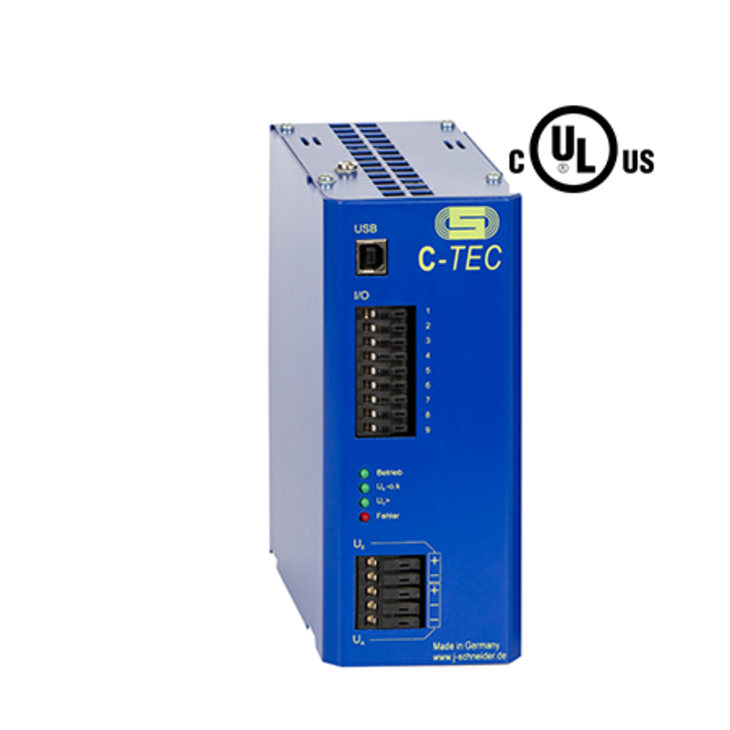

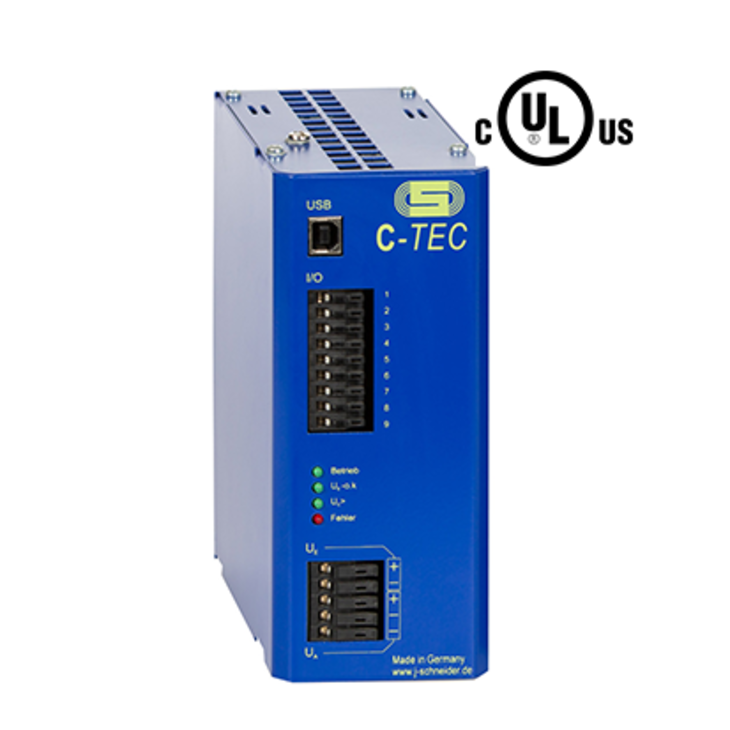

C-TEC 2410 2 kJ

input voltage 24 V DC
output voltage 24 V DC
output current 10 A
energy 1,5 kJ

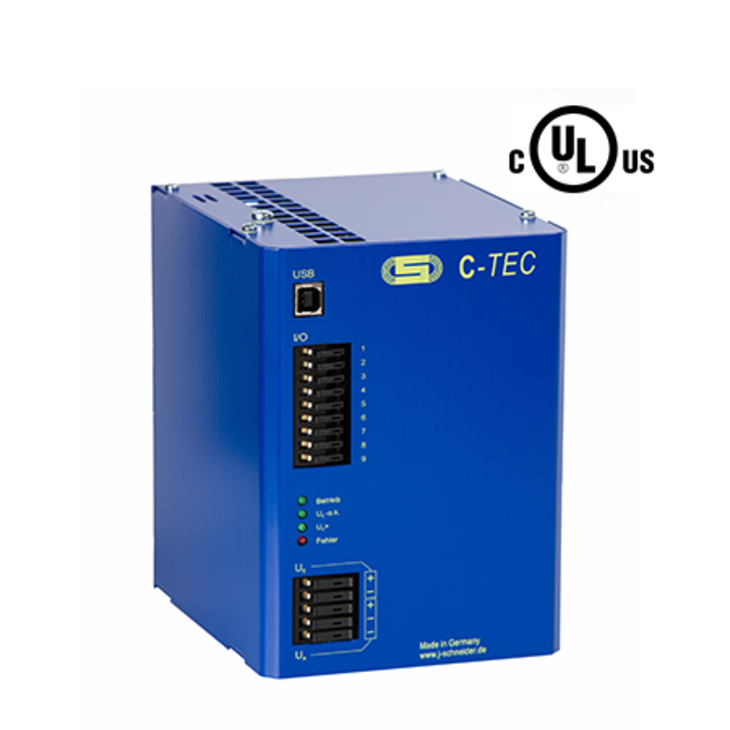

C-TEC 2410 5,8 kJ

input voltage 24 V DC
output voltage 24 V DC
output current 10 A
energy 5,8 kJ

C-TEC 2410 13,4 kJ

input voltage 24 V DC
output voltage 24 V DC
output current 10 A
energy 13,4 kJ

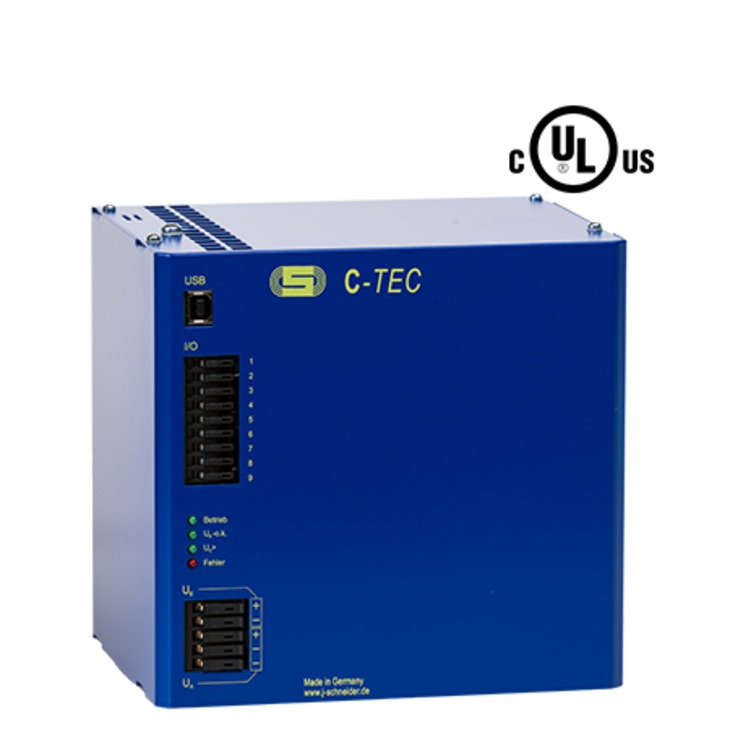

C-TEC 2410 27,6 kJ

input voltage 24 V DC
output voltage 24 V DC
output current 10 A
energy 27,6 kJ

input voltage 24 V DC
output voltage 24 V DC
nominal current 10 A
energy 14 kJ

input voltage 24 V
output voltage 24 V
nominal current 20 A
energy 8 kJ

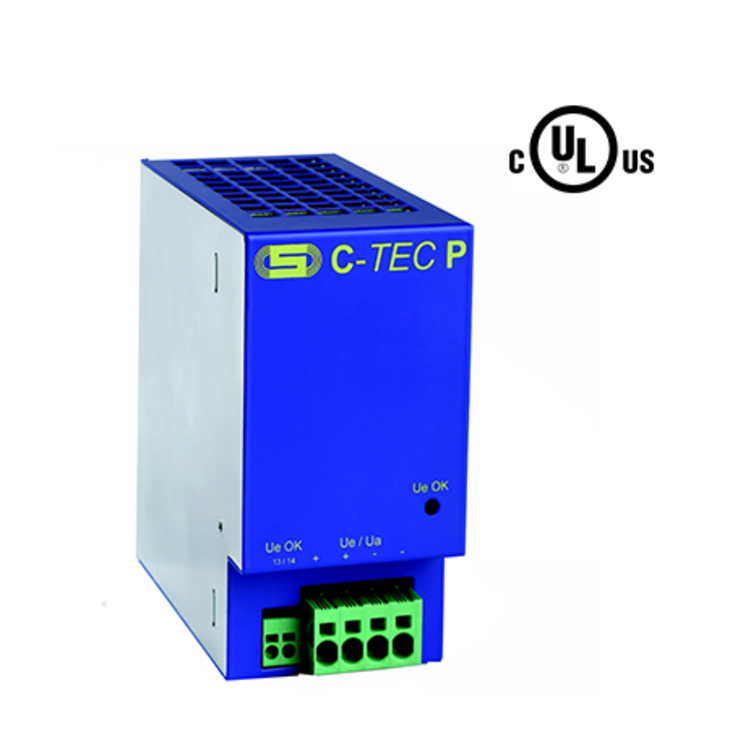

input voltage 24 V DC
output voltage 24 V DC
nominal current 25 A DC
energy 1,2 kJ

input voltage 24 V DC
output voltage 24 V DC
output current 40 A
energy 4 kJ

input voltage 12 V DC
output voltage 11,75 V DC
current/energy 3 A / 1 kJ

C-TEC 1210 2 kJ

input voltage 12 V DC / 24 V DC (SELV / PELV)
output voltage 12 V DC / 24 V DC
nominal current 10 A

C-TEC 1210 5,8 kJ

input current: 12 V
output current: 12 V
Output voltage 10 A

C-TEC 1210 13,4 kJ

input voltage 12 V
output voltage 12 V
input current 10 A
energy 13,4 kJ

C-TEC 1210 27,6

input voltage 12 V DC
output voltage 12 V DC
output current 10 A
energy 27,6 kJ

output voltage 12 V DC
input voltage 12 V DC
output current 25 A
energy 0,5 A

input voltage 48 V DC
output voltage 48 V DC
output current 15 A
energy 1 kJ

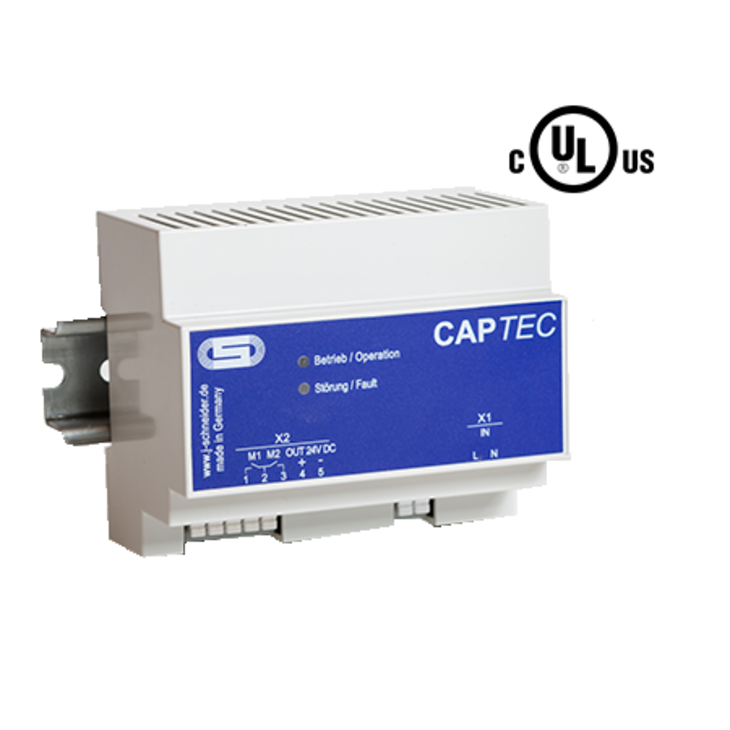

The AC C-TEC series

Devices with AC input

input voltage 110/230 V AC
output voltage 24 V DC
current 1 A
energy 0,6 kJ
peak current 10 A

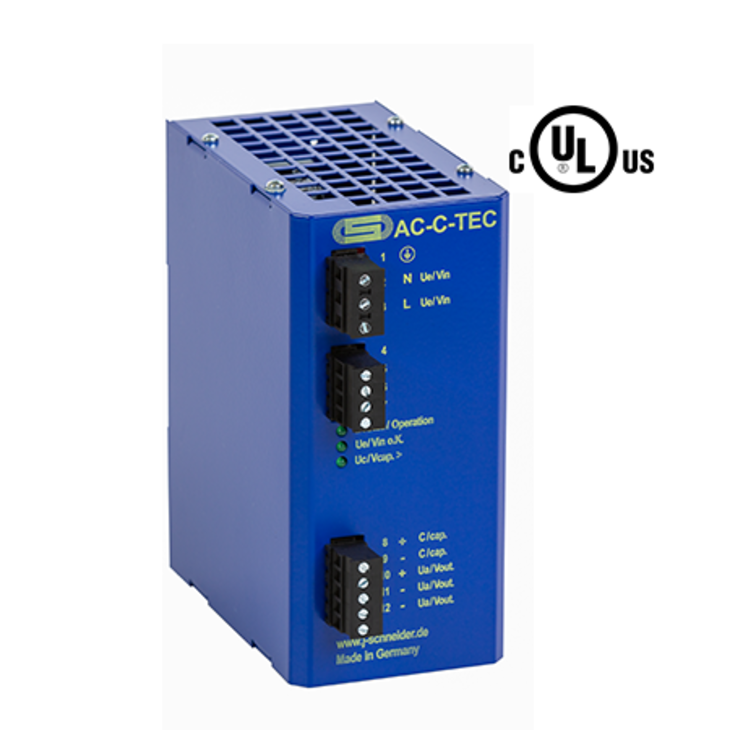

input voltage 230 V AC
output voltage 24 V DC
current 2,8 A
energy 0,5 or 1,5 kJ

AC C-TEC 2403-1-400

input voltage 400 V AC
output voltage 24 V DC
current 2,8 A
energy 1,5 kJ

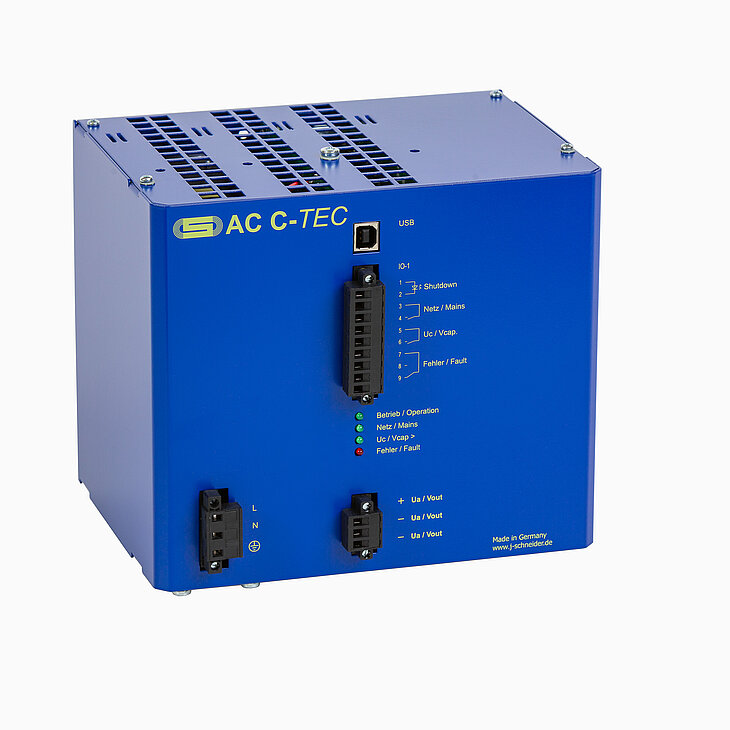

AC C-TEC 2410 13,4 kJ

input voltage 230 V AC
output voltage 24 V DC
current 10 A
energy 13,4 kJ

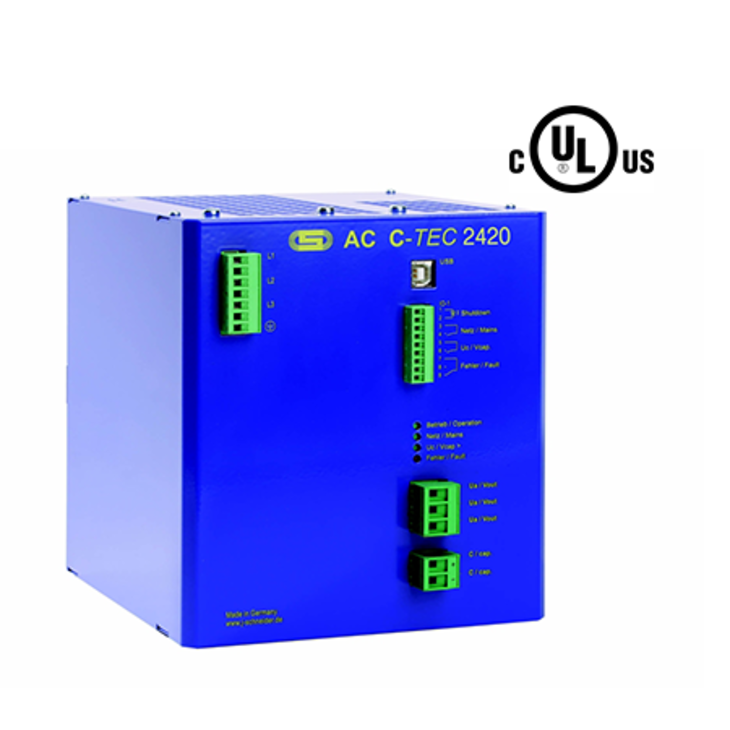

AC C-TEC 2420 8 kJ

input voltage 3 x 400 V AC
output voltage 24 V DC
current 20 A
energy 8 kJ

input voltage 110 - 230 V AC
output voltage 12 V DC
current 1,3 A
energy 0,6 kJ
peak current 10 A

input voltage 230 V AC
output voltage 12 V DC
current 3 A
energy 1 kJ

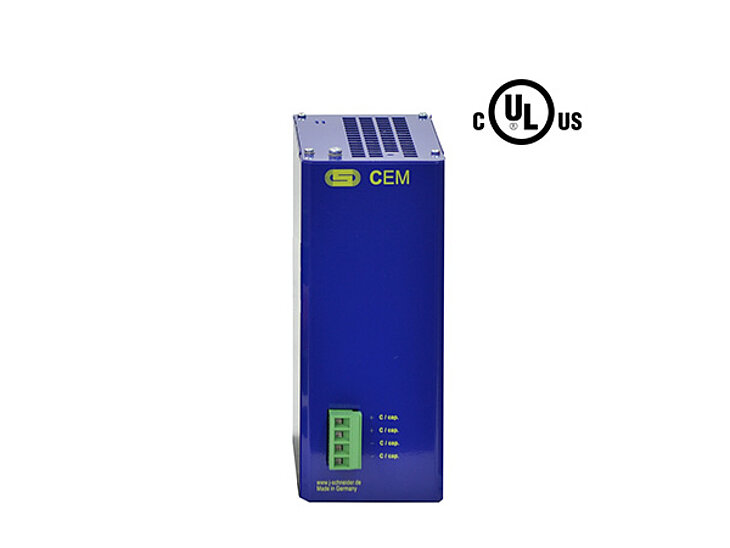

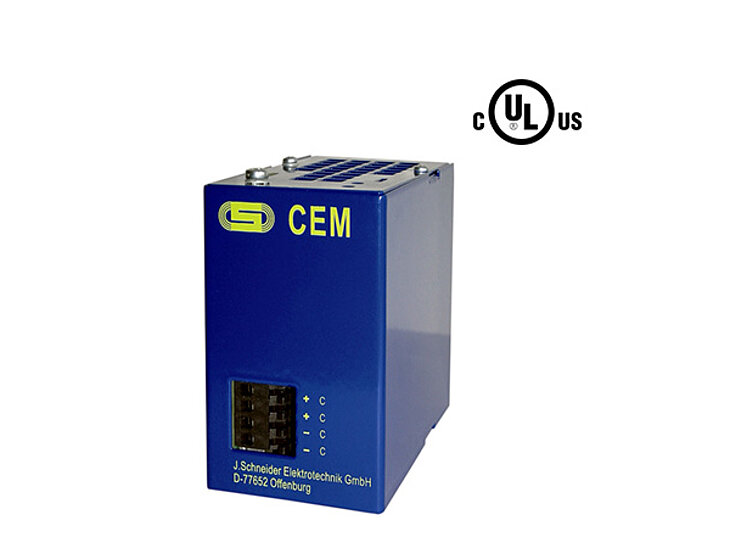

Capacitor extension modules

to increase capacity

input voltage 24 V DC
output voltage 24 V DC
output current 3 A
energy 1,5 kJ

input voltage 24 V DC
output voltage 24 V DC
output current 3 A
energy 3 kJ

input voltage 24 V DC
output voltage 24 V DC
output current 3 A
energy 3 kJ

input voltage 24 V DC
output voltage 24 V DC
output current 20 A
energy 16 kJ

input voltage 12 V DC
output voltage 12 V DC
outut current 3 A
energy 1,5 kJ

input voltage 12 V DC
output voltage 12 V DC
output current 3 A
energy 3 kJ
