Power Supply for defect-free coating
The PLASMATEC-Series is a highly reliable, primary switch-mode power supply product line. It reveals improved process technology for thin film plasma applications. With this state of the art water-cooled power supplies J. Schneider offers different application dedicated systems for vacuum process technologies.
PLASMATEC advantages at a glance:
- Current source power supplies for best arc handling
- Most sophisticated, flexible and adjustable arc management with extremely low passive output energy and a high output power density
- Available in a wide output power range from 3 to 20 kW
- Output power up to 200 kW in parallel connections
THE SHAPE OF THE OUTPUT VOLTAGE IS WHAT MATTERS!

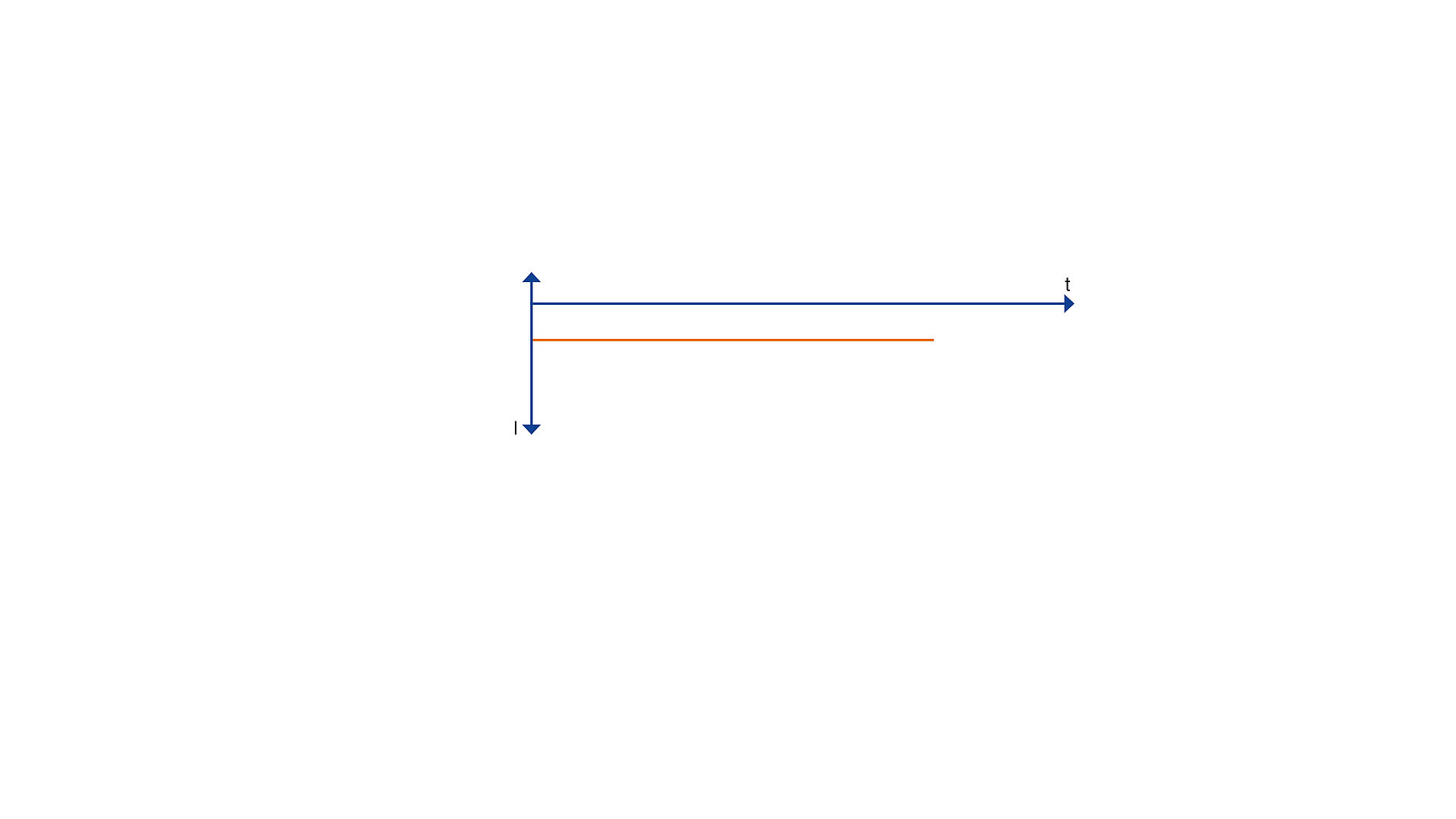

Possible with:
PLASMATEC DC
PLASMATEC DCp
PLASMATEC Mp
PLASMATEC ARC
PLASMATEC BIAS
![](/fileadmin/_processed_/9/c/csm_Plasmatec_DC_Ausgangsspannung_negativ_n_1fe3da4f58.jpg)

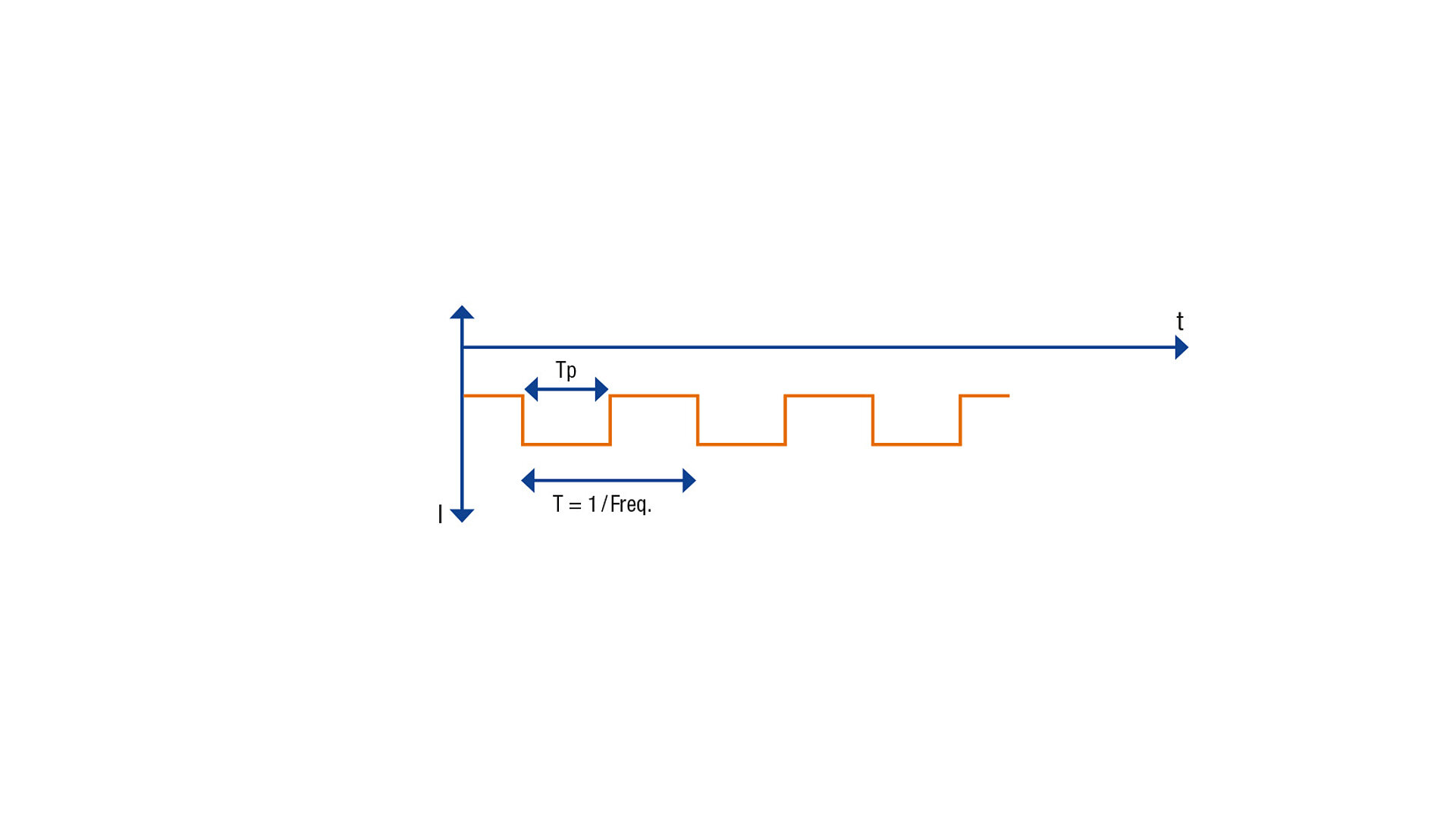

Possible with:
PLASMATEC ARC
![](/fileadmin/_processed_/f/4/csm_Plasmatec_ARC_Puls_1_7ad1626b4e.jpg)

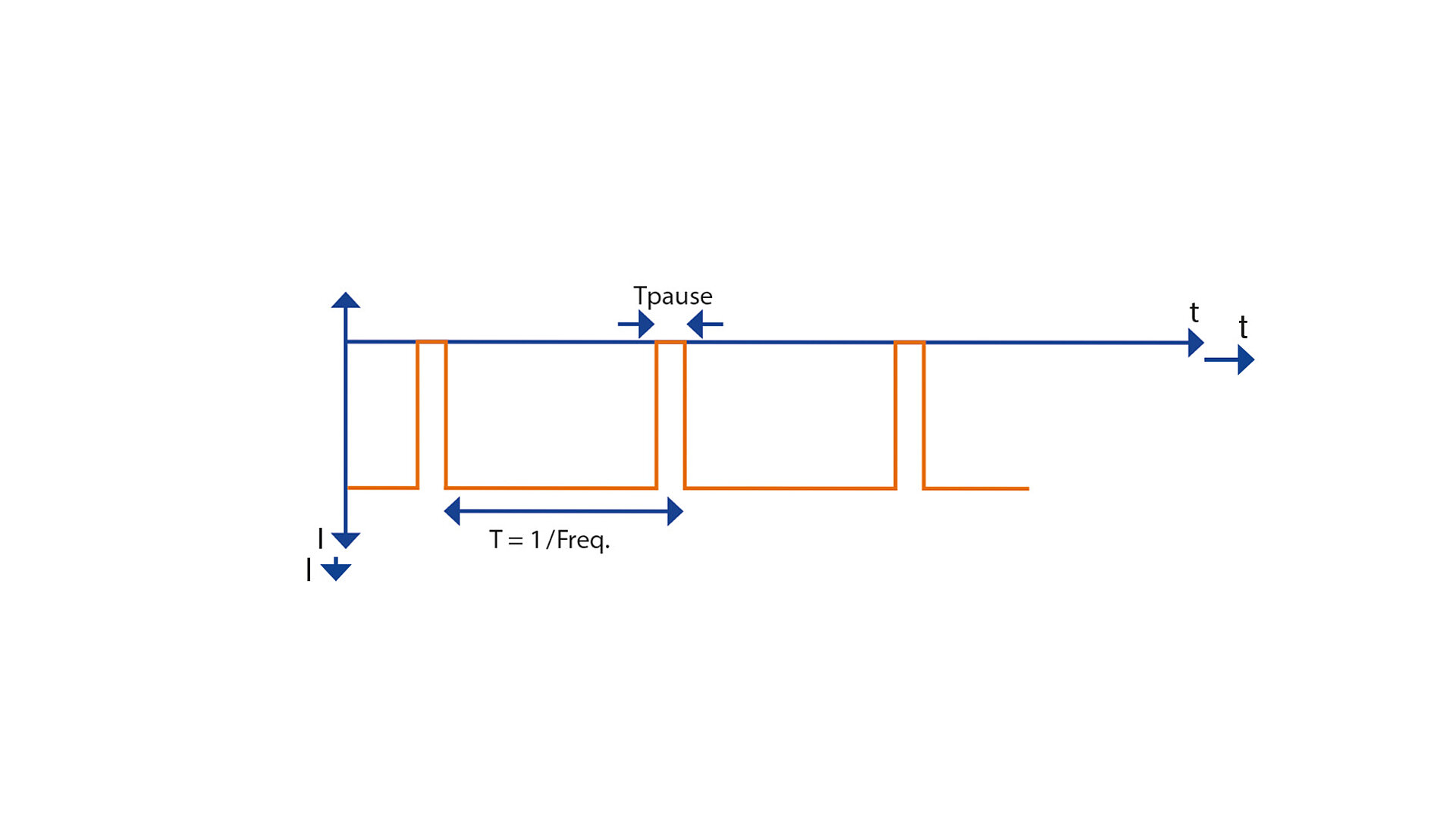

Possible with:
PLASMATEC DCp
PLASMATEC Ap
PLASMATEC Mp
PLASMATEC ARC
PLASMATEC BIAS
![](/fileadmin/_processed_/5/d/csm_PLASMATEC_DCp_Ausgangsspannung_unipolar_gepulst_4ae00c7713.jpg)

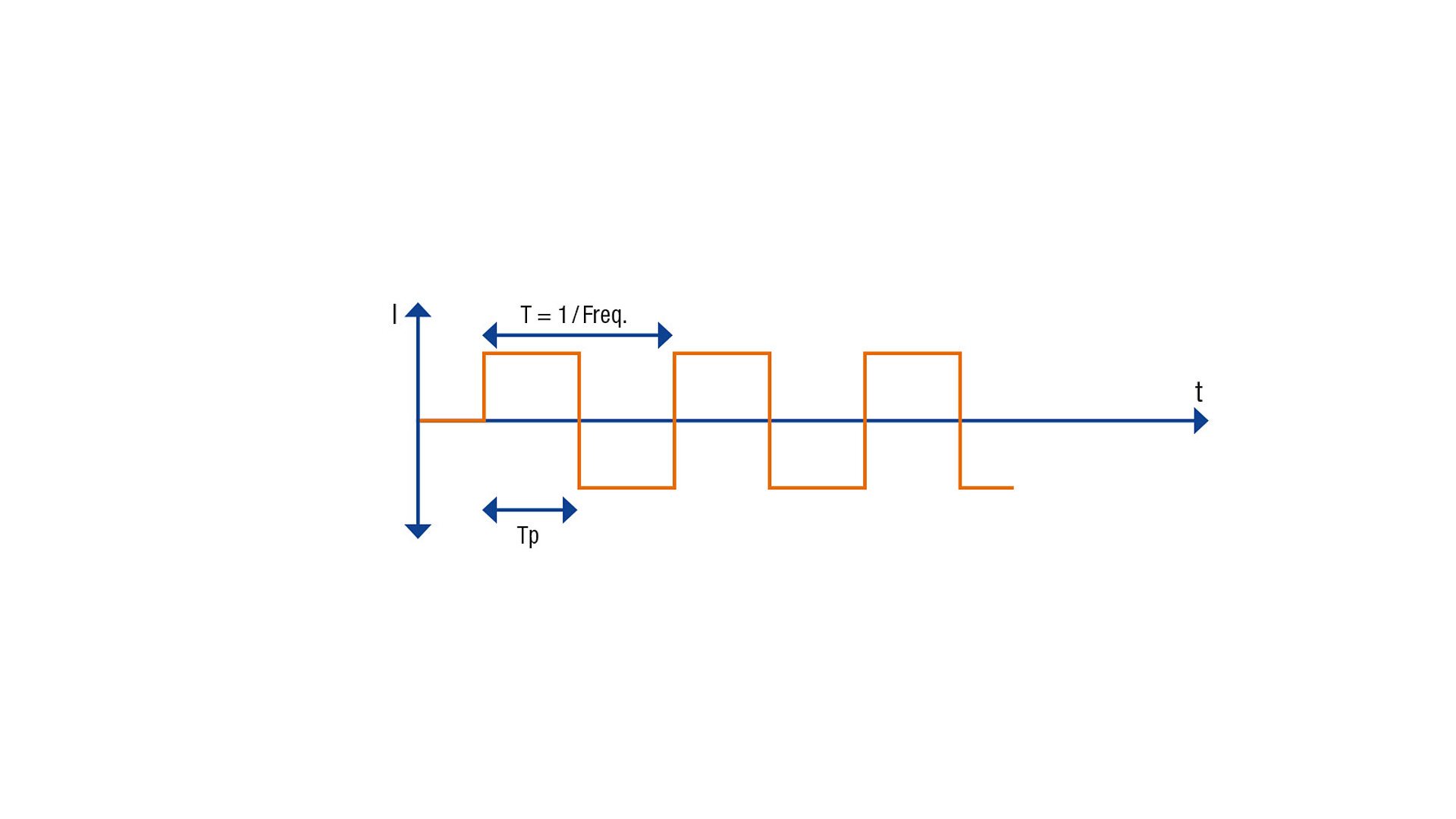

Possible with:
PLASMATEC AC
PLASMATEC Mp
PLASMATEC BIAS
![](/fileadmin/_processed_/9/0/csm_Plasmatec_MP_AC_Puls_5f72fe9003.jpg)

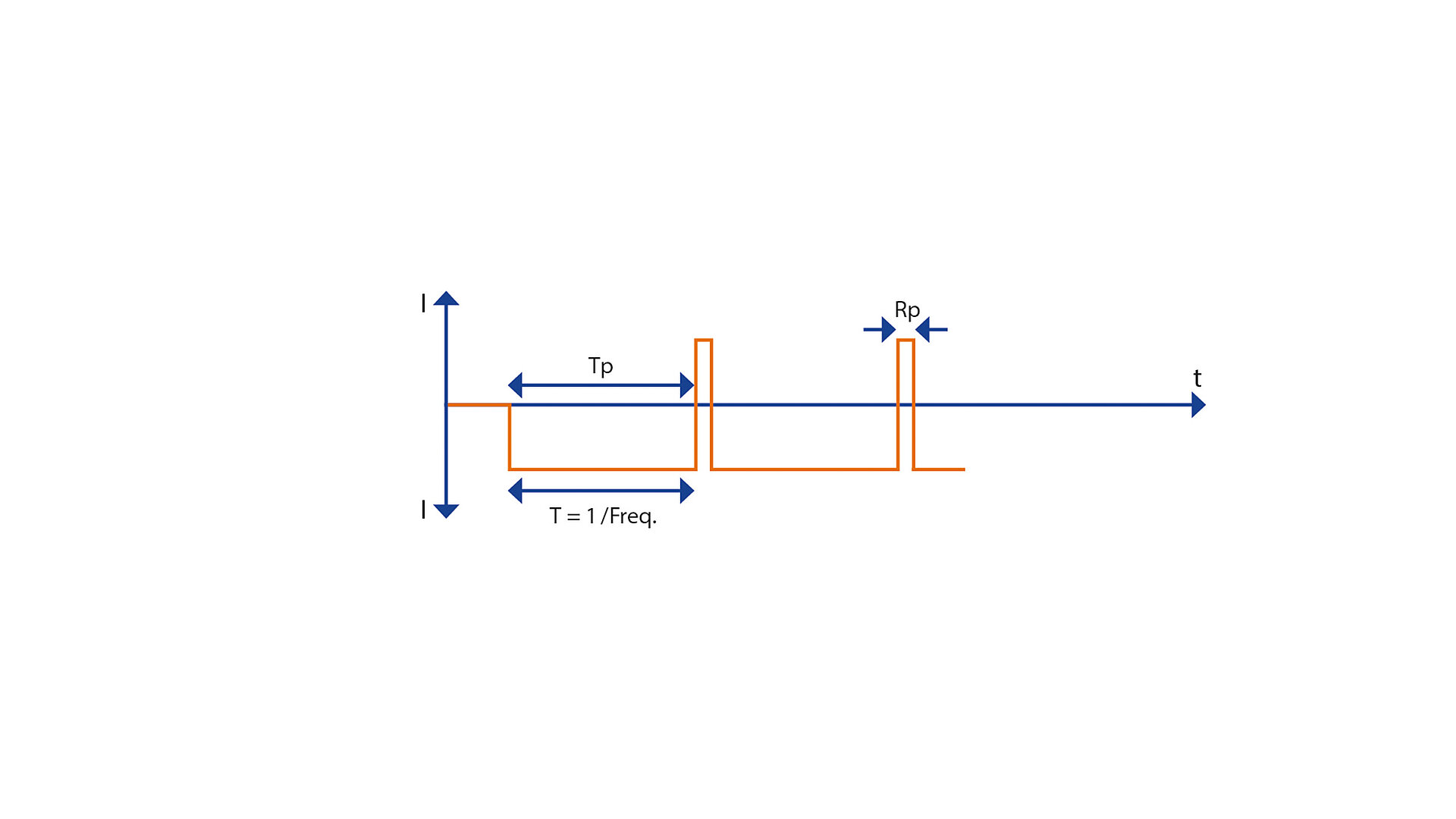

Possible with:
PLASMATEC Ap
PLASMATEC BIAS
![](/fileadmin/_processed_/8/3/csm_Plasmatec_BIAS_Puls_2_d8bc503dba.jpg)

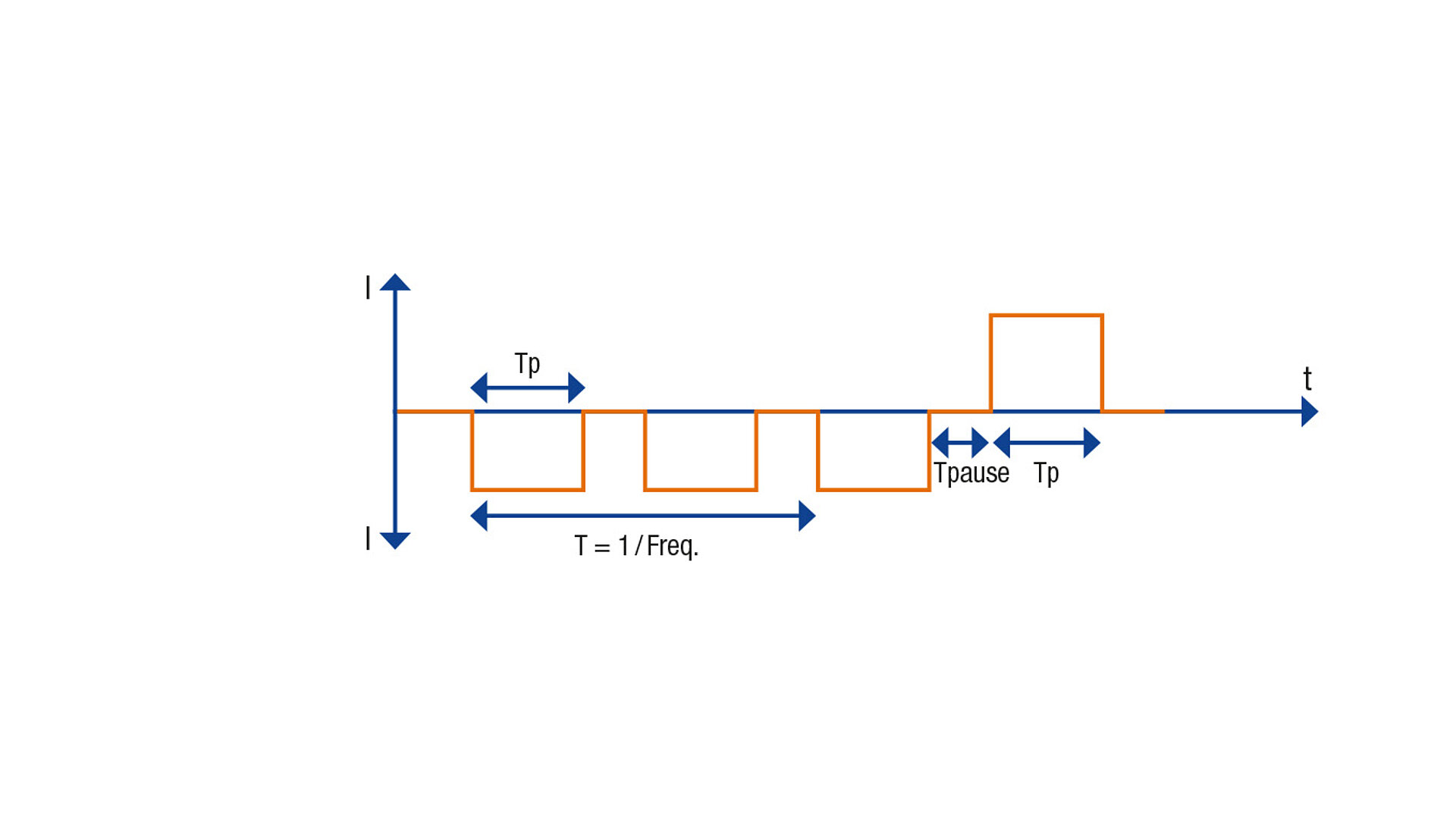

Possible with:
PLASMATEC Mp
![](/fileadmin/_processed_/6/c/csm_Plasmatec_MP_DC_Puls_2_45dbeba1bf.jpg)
